HF SILENT ONE PLUS - 1 KW HF - 1.8 - 54 MHz

New HF amplifier 1.8 - 30 MHz -50-54 MHz, output power 1000 W (800 W at 50 MHz)
Large TOUCH SCREEN display (7"), 3 individually selectable antenna outputs for each desired band, CAT, manual selection, extremely silent and light
REMOTE CONTROL VIA SERIAL WITH DEDICATED SOFTWARE
IMPROVED DIRECTIONAL COUPLER RESPONSE FOR PROTECTION INTERVENTION
Dimensions: 400x340x165mm.
Weight 13Kg. about.

DATI GENERALI

• Frequency Coverage: 1.8 - 54 MHz (all amateur radio frequencies WARC included)
• Operation Mode: All modes
• Auto Band-change with CAT
• VSWR Output Protection Value: 2 : 1
• Rated PA Output Power: 1000/1200 watts
• Harmonics Suppression: HF = better than -50dBc – VHF = better than - 65dBc
• Antenna Outputs: Nr. 3 automatic selection
• IN/OUT Impedance: 50 ohms unbalanced
• RF POWER TRANSISTOR: 1 x 1800watts MRF1K80 NXP LDMOS MOSFET
• Cooling: By temperature-controlled fans
• Acoustic Noise Level: 45 dB maximum
• RF Protections: High antenna VSWR, High Power Out, High Current, Over temperature
• Power Supply Protections: Short circuit, Over current, Over voltage, Over temperature.
• Power Supply Range: 170 Vac to 264 Vac 50/60Hz
• Dimensions (approx.): 400 x 340 x 165 mm
• Weight (approx.): 13 kg

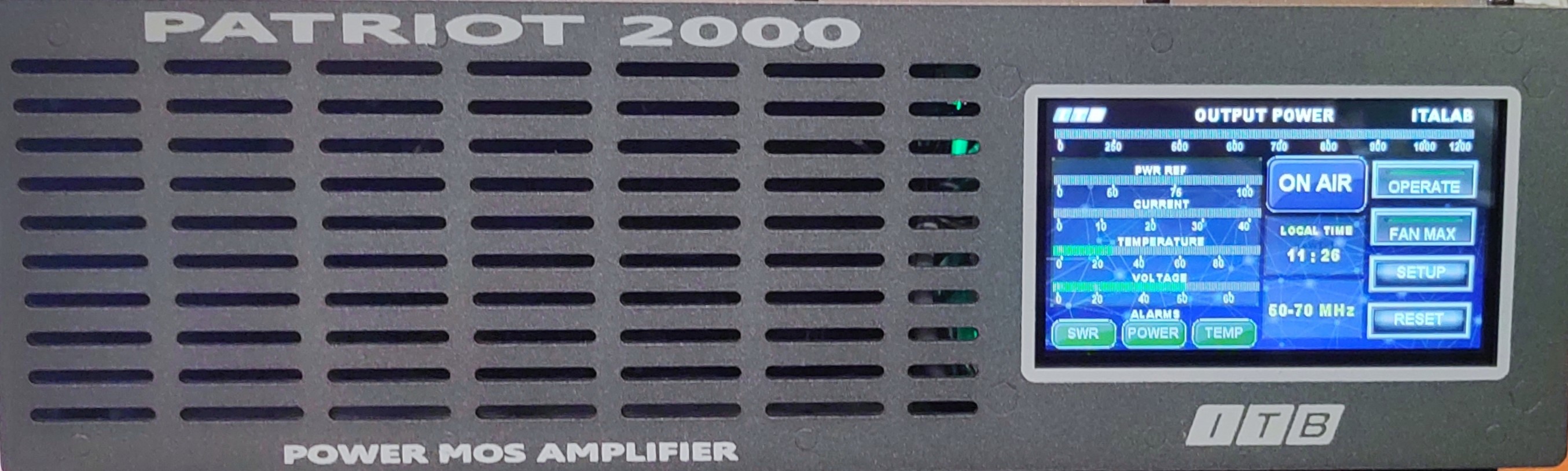

PATRIOT 2000

Compact and lightweight device, it delivers 2 kW at 144 MHz.
KEY DATA:
MAXIMUM OUTPUT POWER: 2.2 kW
Typical drive: approximately 20 W
Control voltage output for the RTX-Antenna switching relay
Harmonic product better than -60 dBc
Possible OPTIONS:
5" EXTERNAL DISPLAY
USB PORT FOR COMPUTER CONNECTION
+48 VOLT POWER SUPPLY FOR ADDITIONAL POWER MODULES ON OTHER FREQUENCIES
Dimensions:
H = 110 mm
D = 430 mm (including connectors)
L = 330 mm
Power supply: 180 - 260 VAC
Weight: approximately 9 kg

Silent One Evolution 1 KW HF 50 MHz -WI-FI

HF SILENT TWO - 2 KW HF - 1,8 - 54 MHz

Frequency Coverage: 1.8 - 54 MHz (all amateur radio frequencies WARC included)
Operation Mode: All modes
Auto Band-change with CAT
VSWR Output Protection Value: 2 : 1
Rated PA Output Power: 2000/2200 watts
Harmonics Suppression: HF = better than -50dBc – VHF = better than - 65dBc
Antenna Outputs: Nr. 3 automatic selection
IN/OUT Impedance: 50 ohms unbalanced
RF POWER TRANSISTOR: 2 x 1500watts MRF1K50H NXP LDMOS MOSFET
Cooling: By temperature-controlled fans Acoustic Noise Level: 45 dB maximum
RF Protections: High antenna VSWR, High Power Out, High Current, Over temperature
Power Supply Protections: Short circuit, Over current, Over voltage, Over temperature.
Power Supply Range: 170 Vac to 264 Vac 50/60Hz
Dimensions (approx.): 370 x 480 x 190mm
Weight (approx.): 24 kg

ATLAS SLIM 1 KW -144 MHz

New VHF 144 MHz 1Kw amplifier (50 - 70 MHz 1Kw, or 432 MHz 500W available on request) of small dimensions, typical driving 15-20 W (options available on request for different driving).
Silent with reduced dimensions and weight (43x34x9 cm, weight 8 kg) and easily transportable and can be placed in small spaces.
Equipped with a 3.2" TOUCHSCREEN display that manages all functions.
The mechanical execution with laser cutting, powder coating, power stage with Freescale MRFE6VP61K25 Mosfet with Teflon PC board make this device a long-lasting device.
Direct reflected power and temperature protections

GENERAL CHARACTERISTICS

Output power: 1KW
driving power: 15-20 Watt (opt. different controls)
harmonious product: CCIR compliant
coaxial relays: TOHTSU ( 2 )
display: 3.7" (opt.output for 5-7" display)
AC Power: 180-260 Volts
dimensions: 43x34x9 cm.
weight: 8Kg.

opt.1- additional mosfet heatsink
opt-2 - additional fan for digital transmissions

NUOVA VERSIONE ATLAS SLIM EVOLUTION 1 KW 144 MHz

NEW VERSION OF THE ATLAS SLIM 1 KW 144 MHz, WITH SEPARATE DISPLAY POSITIONABLE WITHIN 3 METRES (IT IS POSSIBLE TO POSITION IT AT A GREATER DISTANCE AS AN OPTION).

ATLAS 1000- AR 27. amplificatore 1 KW 26 - 30 MHz

New 27 MHz 1Kw amplifier of small dimensions, typical driving 15-20 W (options available on request for different driving).
Silent with reduced dimensions and weight (43x34x9 cm, weight 8 kg) and easily transportable and can be placed in small spaces.
Equipped with a 3.2" TOUCHSCREEN display that manages all functions.
Mechanical execution with laser cutting, powder coating, power stage with Freescale MRFE6VP61K25 Mosfet make this device a long-lasting device.
Direct reflected power and temperature protections

GENERAL CHARACTERISTICS

output power: 1 KW CW,AM p.p. FM
driving power: 15-20 Watts (opt. different controls)
harmonious product: CCIR compliant
coaxial relays: TOHTSU ( 2 )
display: 3.7 "(opt. output for display 5-7")
Ac power supply: 180-260 Volt
dimensions: 43 x 34 x 9 cm.
weight: 8 kg.
